Ubiquiti UniFi U7 Pro — Wi-Fi 7 Ceiling Access Point for Chicago
Model / Series: U7-Pro
Tri-band Wi-Fi 7 ceiling access point — 2.5 GbE uplink, rated for 300+ clients in offices and busy lobbies.
We don't just ship boxes — this goes in as part of our business networking for security systems work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- Ubiquiti
- Series
- UniFi U7 Pro
- Model
- U7-Pro
- Form Factor
- Ceiling-mount Wi-Fi 7 access point
- Wi-Fi Standard
- Wi-Fi 7 (802.11be), tri-band 6 / 5 / 2.4 GHz
- Spatial Streams
- 6
- Max Throughput (6 GHz)
- Up to 5.8 Gbps
- Max Throughput (5 GHz)
- Up to 4.3 Gbps
- Max Throughput (2.4 GHz)
- Up to 688 Mbps
- Coverage
- Up to 140 m²
- Concurrent Clients
- 300+
- Uplink
- 2.5 GbE (RJ45)
- Power
- PoE+ (802.3at)
- Mounting
- Ceiling / wall (kit included)
Best Fit & Recommended For
Ubiquiti UniFi U7 Pro

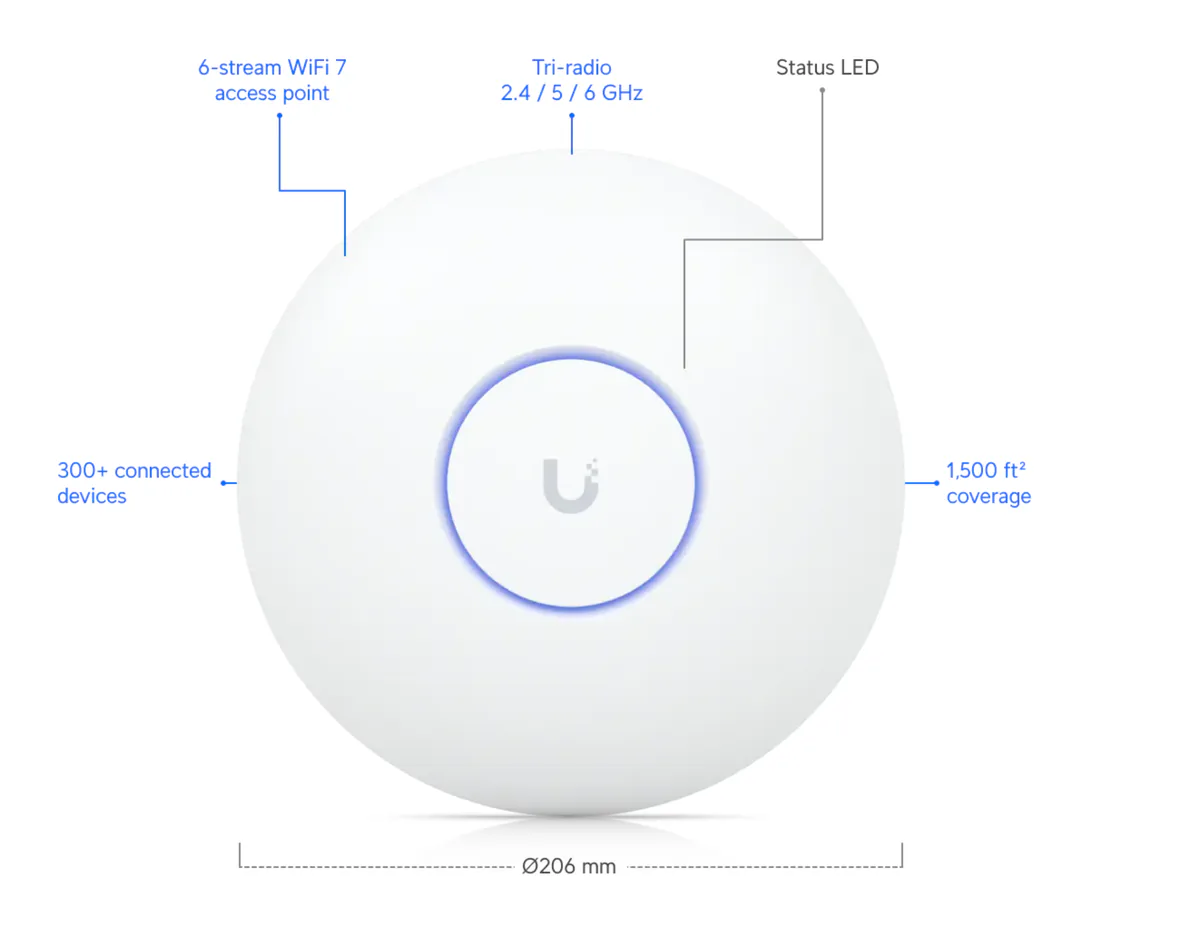

The Ubiquiti UniFi U7 Pro (U7-Pro) is a tri-band Wi-Fi 7 ceiling access point — 6 spatial streams across 6 / 5 / 2.4 GHz with a 2.5 GbE uplink that lets the wireless link actually breathe. Rated by Ubiquiti for up to 140 m² of coverage and 300+ concurrent clients, this is the workhorse Wi-Fi 7 AP for Chicago offices, hotel lobbies, and any room where a few hundred phones show up at once.
What’s Confirmed by the Official Ubiquiti Spec
These specifications come from the techspecs.ui.com / store.ui.com published U7 Pro product page:
- Model: U7-Pro
- Wi-Fi standard: Wi-Fi 7 (802.11be), tri-band 6 / 5 / 2.4 GHz
- Spatial streams: 6
- Max throughput: up to 5.8 Gbps (6 GHz), 4.3 Gbps (5 GHz), 688 Mbps (2.4 GHz)
- Coverage: up to 140 m²
- Concurrent clients: 300+
- Uplink: 2.5 GbE (RJ45)
- Power: PoE+ (802.3at)
When the U7 Pro Fits — Indoor Wi-Fi 7
Pick the U7 Pro when:
- The site needs Wi-Fi 7 indoor coverage with high per-client throughput
- The deployment is dense (300+ clients per AP capacity is meaningful)
- The uplink network supports 2.5 GbE so the wireless side isn’t bottlenecked
- The mounting target is a ceiling in a typical office, lobby, or classroom
For wall-mount Wi-Fi 7 deployments, see the U7 Pro Wall. For outdoor / IP67 deployments with AFC 6 GHz, see the U7 Pro Outdoor. For Wi-Fi 5 mesh / outdoor amenity, see the cost-effective UAP-AC-Mesh.
UniFi U7 Pro Family Comparison
| Model | Form Factor | Wi-Fi | Uplink | Best Fit |
|---|---|---|---|---|
| U7 Pro (this page) | Ceiling | Wi-Fi 7 tri-band | 2.5 GbE | Indoor high-density coverage |
| U7 Pro Wall | Wall-mount | Wi-Fi 7 tri-band | 2.5 GbE | Wall placements (hospitality / multi-tenant) |
| U7 Pro Outdoor | Outdoor IP67 | Wi-Fi 7 tri-band, AFC 6 GHz | 2.5 GbE | Outdoor weatherproof / extended-range |
| UAP-AC-Mesh | Indoor / outdoor | Wi-Fi 5 dual-band | 1 GbE | Cost-effective mesh / outdoor amenity |
Where the Ubiquiti U7 Pro Wins in Chicago
- High-density office Wi-Fi 7 coverage
- Hospitality property guest-room / lobby Wi-Fi 7
- Multi-tenant residential property amenity-area Wi-Fi 7
- Office building boardroom / open-plan Wi-Fi 7
- Retail customer / staff-area Wi-Fi 7
- Industrial / warehouse office-area Wi-Fi 7
Local Chicago Coverage
Vidimost installs the Ubiquiti U7 Pro across the full city of Chicago for high-density indoor Wi-Fi 7.
Recommended Pairings
- Ubiquiti U7 Pro Wall — wall-mount sibling for hospitality / multi-tenant
- Ubiquiti U7 Pro Outdoor — outdoor IP67 sibling
- Ubiquiti USW Pro Max 24 PoE — 2.5 GbE PoE++ switch for U7 uplinks
- Ubiquiti UCG-Fiber — high-throughput gateway for Wi-Fi 7 sites
Professional Installation by Vidimost
Vidimost LLC installs the U7 Pro across Chicago for high-density Wi-Fi 7 deployments. Full-scope service includes site walkthrough, RF survey, ceiling mounting, CAT6 / CAT6A cabling sized to the 2.5 GbE uplink, PoE+ switch port verification, and integration with the broader UniFi network. Contact us for a free site walkthrough and quote.
