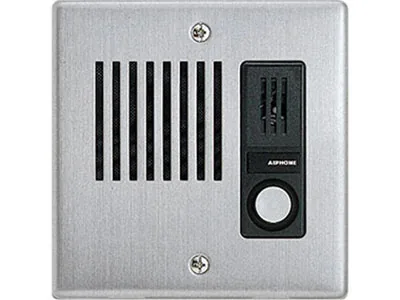

Aiphone LE-DA — LE Series Analog Audio Door Station for Chicago

Aiphone LE-DA — LE Series Analog Audio Door Station

The Aiphone LE-DA is the LE-Series analog audio door station — flush-mount in a 2-gang back box (or surface with the SBX-2G/A adapter), hands-free communication when the master station answers, IP33 weather rating. Pairs with the LEF Series (LEF-3L, LEF-5, LEF-10S) and LEM Series (LEM-1DL) master stations. Three shielded conductors to a shop’s back door and a master station at the counter still beat an IP system on price by a wide margin.

What’s Confirmed by the Official Aiphone Spec

These specifications come from the aiphone.com LE-DA product page:

• Mounting: flush in a 2-gang back box, or surface with SBX-2G/A
• Communication: hands-free when master station answers
• Environmental: IP33; 14 °F to 140 °F (−10 °C to 60 °C) operating
• Dimensions: 4-1/2 in × 4-9/16 in × 2 in (115 × 116 × 50.8 mm)
• Wiring: 3-conductor shielded; max 650 ft (22 AWG) or 1,600 ft (18 AWG) to farthest master station

When LE-DA Fits

Pick the LE-DA when the project needs a simple analog audio-only door entry paired with an LEF or LEM master station inside, with proven wiring distances up to 1,600 ft on shielded 18 AWG. For IP video, step up to the Aiphone IX-DVM.

LE / LEF / LEM Family

The LE-DA is the door station in this family. Pair it with the right master station based on number of doors / sub-stations:

Master	Capacity	Best Fit
LEM-1DL	Up to 1 door / sub	Single-door simple entry
LEF-3L	Up to 3 stations + door release	Small office / 2–3 door site
LEF-5	Up to 5 stations	Medium site
LEF-10S	Up to 11 stations	Larger site / multi-room

Where the Aiphone LE-DA Wins in Chicago

• Small commercial audio-only door entry
• Multi-tenant residential side / service entry
• Industrial / warehouse audio-only entry
• Office building back-of-house audio entry
• Retail back-office audio entry
• Hospitality property service entry
• Replacement of legacy 3-wire door stations on LE Series upgrade

Local Chicago Coverage

Vidimost installs the Aiphone LE-DA across the full city of Chicago for analog audio-only door station deployments.

Recommended Pairings

• LEF / LEM master station per door / station count (see family table above)
• Aiphone IX-DVM — IP-video sibling when video and ONVIF / SIP are needed
• 3-conductor shielded cable; PS-1208UL or PS-1225UL master power supply (specified per project)

Professional Installation by Vidimost

Vidimost LLC installs the Aiphone LE-DA across Chicago for analog audio door station deployments. Full-scope service includes site walkthrough, flush 2-gang back-box or surface SBX-2G/A mounting, 3-conductor shielded cable run with verified distance, master-station selection (LEF / LEM), and door-release wiring. Contact us for a free site walkthrough and quote.
