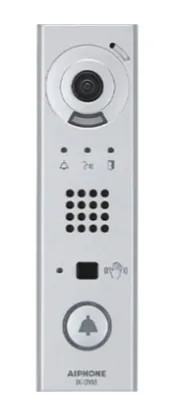

Aiphone IX-DVM — IP Vandal-Resistant Surface-Mount Video Door Station for Chicago
Model / Series: IX-DVM
Vandal-resistant IP video door station — PoE powered, 720p wide-view camera, ONVIF and SIP compliant for commercial entries.
We don't just ship boxes — this goes in as part of our video intercom installation in Chicago work. City building? See our Chicago, IL service area.
Specifications
- Brand
- Aiphone
- Series
- Aiphone IX Series
- Model
- IX-DVM
- Form Factor
- Surface-mount IP video door station
- Camera (per Aiphone)
- 720p HD, wide dynamic range; approx. 170° horizontal field of view
- Power (per Aiphone)
- PoE (IEEE 802.3af class 0); 4.6 W max
- Environmental (per Aiphone)
- IK07 impact / IP54 weather
- Dimensions (per Aiphone)
- 6-7/8 in H × 1-7/8 in W × 1-5/16 in D (175 × 48 × 34 mm)
- Standards (per Aiphone)
- ONVIF Profile S compliant; SIP compliant
- Compliance (per Aiphone)
- TAA compliant; UL certified
Best Fit & Recommended For
Aiphone IX-DVM — IP Video Door Station
The Aiphone IX-DVM is the IX-Series IP video door station — vandal-resistant, surface-mount, with a 720p HD wide-dynamic-range camera (approx. 170° horizontal FOV), PoE 802.3af powered (4.6 W max), IK07 impact / IP54 weather rated, and full ONVIF Profile S + SIP compliance. TAA compliant, UL certified. We mount these at office side doors and service entries where the faceplate takes a beating and one PoE line is all the wiring you get.
What’s Confirmed by the Official Aiphone Spec
These specifications come from the aiphone.com IX-DVM product page:
- Camera: 720p HD, wide dynamic range; approx. 170° horizontal FOV
- Power: PoE IEEE 802.3af class 0; 4.6 W max
- Environmental: IK07 / IP54
- Dimensions: 6-7/8 in × 1-7/8 in × 1-5/16 in (175 × 48 × 34 mm)
- Standards: ONVIF Profile S; SIP
- Compliance: TAA compliant; UL certified
When IX-DVM Fits
Pick the Aiphone IX-DVM when the project needs a PoE-powered, IP-based, vandal-resistant door station that integrates with Aiphone IX / IXG master stations, third-party ONVIF VMS, or any SIP call platform. TAA compliance is on the spec sheet when a bid requires it.
For analog audio-only entry, see the Aiphone LE-DA. For modular IP with on-panel keypad / RFID / fingerprint / Bluetooth, see the 2N IP Verso 2.0. For smartphone-first multifamily, see the ButterflyMX.
Where the Aiphone IX-DVM Wins in Chicago
- Commercial main entry IP video door station
- Office building lobby visitor entry
- Industrial / warehouse staff entry
- Hospitality property service entry
- Multi-tenant residential side / service entry
- Replacement of legacy analog door stations on IP migration
Local Chicago Coverage
Vidimost installs the Aiphone IX-DVM across the full city of Chicago for IP video door station deployments.
Recommended Pairings
- Aiphone LE-DA — analog audio-only sibling for cost-down secondary doors
- 2N IP Verso 2.0 — modular IP alternative
- ButterflyMX — smartphone-first cloud alternative
- Aiphone IX / IXG master stations and apps (specified per project)
Professional Installation by Vidimost
Vidimost LLC installs the Aiphone IX-DVM across Chicago for IP video door station deployments. Full-scope service includes site walkthrough, surface-mount placement, CAT5e / CAT6 cabling, PoE switch port verification, ONVIF / SIP / IX-platform configuration, master-station / app pairing, and access-control coordination. Contact us for a free site walkthrough and quote.
