Capture Advance · Video Surveillance · Cameras

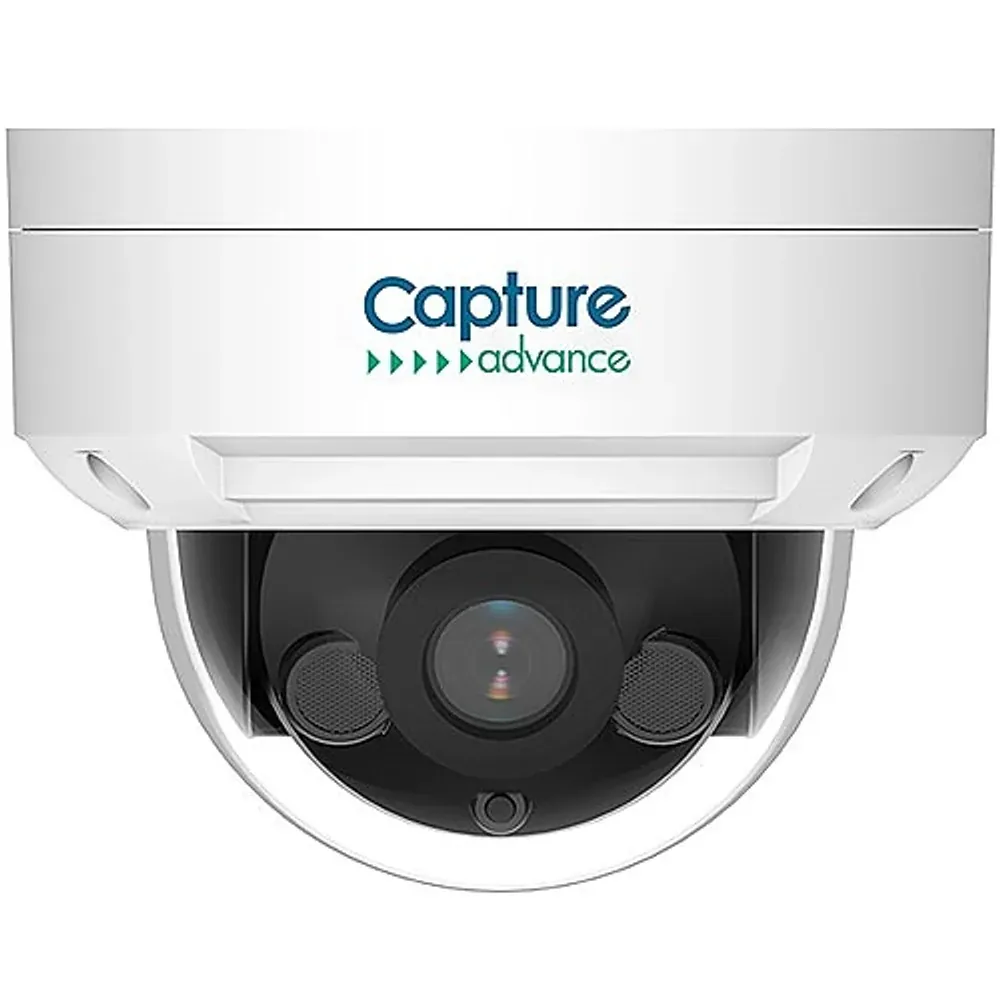

Capture Advance R2-8MPFXDOME 8MP / 4K IP WDR IR Dome Camera with 2.8mm Lens + 98 ft IR + PoE

Model / Series: R2-8MPFXDOME

The Capture Advance R2-8MPFXDOME is an 8MP / 4K (3840 × 2160) IP WDR IR fixed dome network camera with 1/2.8" progressive-scan CMOS sensor, 2.8mm fixed lens, 30 m / 98 ft built-in IR, true WDR, true day/night, IP67 outdoor housing, microSD up to 256 GB edge storage, intelligent video analytics (IVA), ONVIF compliance, PoE / 12 VDC power, NDAA compliance, and 36-month warranty. The 4K budget IP dome for Chicago network video projects where NDAA + 4K + cost matter.

NDAA Compliant AI Analytics
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.

Capture Advance R2-8MPFXDOME

Specifications

Brand
Capture Advance
Model
R2-8MPFXDOME
Series
Capture Advance IP Camera Series
Camera Type
IP / network outdoor fixed dome with built-in IR
Image Sensor
1/2.8" progressive-scan CMOS
Resolution
8 MP / 4K UHD (3840 × 2160)
Lens
2.8 mm fixed
Iris
Fixed iris
Day/Night
True day/night, auto IR-cut filter
IR Distance
30 m / 98 ft (built-in IR LED)
WDR
True WDR
Network
10/100 Ethernet — PoE (IEEE 802.3af) or 12 VDC power
ONVIF
ONVIF conformant
Edge Storage
microSD card slot — up to 256 GB
Video Analytics
Intelligent Video Analytics (IVA) — line-cross / motion / region detection
Environmental Protection
IP67 — outdoor weatherproof, dust-tight + immersion-rated
NDAA / TAA Compliance
NDAA compliant per Capture Advance documentation
Warranty
3 years (36 months)

Best Fit & Recommended For

✓ Budget-tier Chicago commercial 4K IP camera deployments where NDAA matters
✓ HOA and multi-tenant residential 4K IP networks
✓ Small-business greenfield 4K IP installations on PoE switches
✓ Property management 4K ceiling-mount positions
✓ Retail interior + storefront overhang 4K positions
✓ Restaurant and hospitality 4K dining-room ceilings
✓ Healthcare 4K reception and waiting-room ceiling positions
✓ School and educational facility 4K IP-network exteriors
✓ Mixed-tier projects where premium 4K cameras handle critical positions and Capture Advance handles general 4K coverage

Capture Advance R2-8MPFXDOME — 4K Budget IP Dome for Network Video Deployments

The Capture Advance R2-8MPFXDOME is an 8MP / 4K (3840 × 2160) IP WDR IR fixed dome from Capture Advance — ADI’s private-label brand. Features include 1/2.8” progressive-scan CMOS sensor, 2.8 mm fixed lens, 30 m / 98 ft built-in IR, True WDR, true day/night, IP67 outdoor housing, microSD up to 256 GB edge storage, Intelligent Video Analytics (IVA), ONVIF conformance, PoE (IEEE 802.3af) or 12 VDC power, NDAA compliance, and a 36-month warranty. The 4K budget IP dome for Chicago network video projects where NDAA + 4K + cost matter.

Why Budget 4K Has a Place

TierBrandBest for
Premium 4KAxis P1488-LE (1/1.2” sensor, ARTPEC-9, AV1, AI), Hanwha PNO-A9081RForensic ID, federal cybersecurity, AI / cloud, harsh outdoor
Mid 4KHanwha A-series, Axis M / QGeneral commercial 4K, mixed analytics
Budget 4K (this)Capture Advance R2-8MPFXDOMEGeneral 4K coverage, NDAA budget projects, mixed-tier general positions

Mixed-tier deployments — premium 4K at critical positions, budget 4K at general coverage — are the cost-effective Chicago 4K IP pattern.

R2-8MPFXDOME vs. Premium 4K Alternatives

FeatureR2-8MPFXDOME (this)Axis P1488-LEHanwha PNO-A9081R
Resolution4K (8 MP)4K (8 MP)4K (8 MP)
Sensor1/2.8” CMOS1/1.2” CMOS (large)1/1.8” CMOS
FormDomeBulletBullet
CodecH.264 / H.265AV1, H.265, H.264H.265
AI AnalyticsIVA (line/motion/region)AXIS Object Analytics + Live Privacy Shield + Image HealthDeep-learning Object Detection (Person/Face/Vehicle/Plate) + CloudConnector
WDRTrue WDRForensic WDRForensic WDR
Operating tempLimited−40 °C to +60 °C−35 °C to +60 °C
CybersecurityStandardAXIS Edge Vault (signed firmware / signed video)Hanwha cybersecurity / FIPS components
Best fitBudget general 4KForensic / outdoor / federal / AIAI / cloud / forensic
Cost tierLowestPremiumPremium

The R2-8MPFXDOME is the right pick for general 4K coverage positions where 4K IP at lower cost matters. Premium 4K cameras are the right pick for forensic, federal, AI-driven, or harsh-outdoor positions.

Where the R2-8MPFXDOME Wins in Chicago

  • HOA and multi-tenant residential 4K IP networks — wide common areas, parking-deck levels, large lobbies at Chicago HOAs
  • Small-business greenfield 4K IP installations on PoE switches
  • Property management 4K ceiling-mount at small commercial properties
  • Retail interior + storefront overhang 4K positions for store-floor coverage
  • Restaurant and hospitality 4K dining-room ceilings at boutique Chicago venues
  • Healthcare 4K reception / waiting-room ceilings at clinics
  • Mixed-tier projects where premium cameras handle critical positions and Capture Advance handles general 4K coverage

Local Chicago Coverage

Vidimost installs the R2-8MPFXDOME across the full city of Chicago — downtown Loop to the neighborhood corridors.

Professional Installation by Vidimost

Vidimost LLC installs Capture Advance 4K IP dome cameras across Chicago for budget-tier general 4K coverage projects, mixed-tier deployments, and NDAA-compliant federal-grant-funded installations. Full-scope service includes site walkthrough, network design (PoE switch sizing, 4K bandwidth planning, VLAN segmentation), Cat6 cable runs, mounting (ceiling, soffit, eave, wall), VMS integration via ONVIF, IVA configuration, edge-storage setup, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Capture Advance

Capture Advance R2-5MPFXTUR

The Capture Advance R2-5MPFXTUR is a 5MP (2560 × 1920) IP WDR IR turret / eyeball network camera with 2.8mm fixed lens, 30 m / 98 ft built-in IR, true day/night, IP66 housing, microSD up to 256 GB edge storage, intelligent video analytics (IVA), ONVIF compliance, PoE / 12 VDC power, NDAA compliance, and 36-month warranty. Replaces R2-2MPIPEYE / R2-4MPIPEYE. The 5MP IP turret for budget-tier Chicago network video projects where NDAA + ONVIF + cost matter.

View →

Axis Communications

Axis P1488-LE

The Axis P1488-LE is a 4K (8MP) outdoor AI bullet camera built on the ARTPEC-9 chipset — with a large 1/1.2" CMOS sensor, motorized varifocal 5.9–13.8 mm lens (F1.5–F2.8), 60 fps, AV1 codec support, Lightfinder 2.0, Forensic WDR, OptimizedIR up to 50 m, IP66 / IP67 / IK10, −40 °C to +60 °C, and preinstalled AXIS Object Analytics, Image Health Analytics, and Live Privacy Shield. The newer-generation upgrade to the P1468-LE for Chicago premium 4K perimeter and forensic identification.

View →

Axis Communications

Axis P3267-LVE

5MP outdoor vandal dome with motorized zoom and built-in IR — a workhorse outdoor security camera for condo entrances, storefronts, and parking garages.

View →

Hanwha Vision

Hanwha PNO-A9081R

The Hanwha PNO-A9081R is a 4K (8MP) Edge AI cloud-ready outdoor IR bullet camera with deep-learning analytics (face / person / vehicle / license plate detection, attribute search), 4.5–10 mm motorized varifocal lens, 30 m IR, 120 dB WDR, gigabit network, dual microSD up to 512 GB, PoE+, and CloudConnector compatibility (HealthPro, OnCloud). The bullet companion to the PND-A9081RF — premium AI surveillance for Chicago commercial perimeters, parking lots, and identification-critical positions.

View →

Frequently Asked Questions

What does 4K (8 MP) buy me at this price tier? +
**4K (3840 × 2160 = 8 MP) delivers 4× the pixel density of 1080p** at the same scene — meaningful for: **(a) wide-area coverage** with usable forensic detail across the whole scene; **(b) parking-lot / property-edge positions** where after-the-fact digital zoom into recorded footage retains identification; **(c) larger-room ceiling coverage** where 4K halves the camera count vs. 1080p. The Capture Advance R2-8MPFXDOME is the **budget-tier 4K IP option** — same pixel count as premium 4K cameras, with classical (not deep-learning) analytics and standard cybersecurity. Choose this when **4K resolution at lower cost** is the priority.
How does the R2-8MPFXDOME fit alongside premium 4K brands? +
**Mixed-tier deployments** are the cost-effective Chicago commercial 4K IP pattern. Premium 4K cameras ([Axis P1488-LE](/products/video-surveillance/cameras/axis-p1488-le/) with 1/1.2" large sensor + ARTPEC-9 + AV1 + Live Privacy Shield, [Hanwha PNO-A9081R](/products/video-surveillance/cameras/hanwha-pno-a9081r/) with deep-learning AI + CloudConnector) cover **forensic / identification-critical / federal cybersecurity / AI-driven** positions. Budget-tier 4K cameras like the R2-8MPFXDOME cover **general 4K coverage positions** — interior 4K ceilings, secondary perimeter, common-area lobbies — at lower per-camera cost. Both integrate via ONVIF into the same VMS.
Will the R2-8MPFXDOME work with my Genetec / Milestone / generic NVR? +
Yes — ONVIF conformance is standard. Compatible with **Genetec Security Center, Milestone XProtect, Axis Camera Station (via ONVIF profile), Hanwha Wisenet WAVE, generic ONVIF NVRs**, and most VMS platforms. Full-feature access (IVA configuration, edge-storage retrieval) varies by VMS — for full feature access on critical projects, premium-brand cameras with native VMS integration are typically preferred; the R2-8MPFXDOME fills the budget-tier general 4K coverage role.
What's the difference vs. the [R2-5MPFXTUR](/products/video-surveillance/cameras/capture-advance-5mpfxtur/) (5MP IP turret)? +
**Resolution and form factor.** R2-8MPFXDOME is **4K (8 MP) dome** form with **IP67** rating; R2-5MPFXTUR is **5MP turret** form with IP66. Both share the same Capture Advance IP platform — ONVIF, IVA, microSD, NDAA, PoE, true WDR, 98 ft IR. **Choose the R2-8MPFXDOME** when 4K resolution matters (wide-area coverage, forensic detail) AND a dome form is appropriate. **Choose the R2-5MPFXTUR** when 5MP is sufficient AND a clean turret form factor is preferred for ceiling positions. Many Chicago projects mix both — 4K domes at parking entries / wide-coverage positions, 5MP turrets at lobby / corridor ceilings.
Is the R2-8MPFXDOME NDAA compliant? +
Yes — per Capture Advance documentation, the R2-8MPFXDOME is NDAA Section 889 compliant. This makes it eligible for federal-grant-funded projects, government-adjacent facilities, and properties with NDAA contractual requirements. Always verify current NDAA documentation matches your project's specific compliance date and exclusion list.
Will the R2-8MPFXDOME survive Chicago winters? +
**IP67-rated** for weather exposure and immersion (better than IP66 — also handles temporary submersion), but operating-temperature spec is more limited than premium outdoor cameras like the [Axis P1488-LE](/products/video-surveillance/cameras/axis-p1488-le/) (−40 °C to +60 °C) or [Hanwha PNO-A9081R](/products/video-surveillance/cameras/hanwha-pno-a9081r/). For exposed outdoor positions in Chicago polar-vortex conditions (-25 °C and below), premium outdoor-rated cameras are the safer pick. The R2-8MPFXDOME is best suited for **soffit / eave / covered-position outdoor**, **interior**, **semi-outdoor garages and covered walkways**, and **outdoor positions in protected microclimate**.
How does the R2-8MPFXDOME compare to the [Axis P1488-LE](/products/video-surveillance/cameras/axis-p1488-le/) (Axis 4K AI bullet)? +
The Axis P1488-LE is the premium 4K AI outdoor bullet at Axis platform: **1/1.2" large CMOS sensor (substantially larger than 1/2.8"), ARTPEC-9 chipset, AV1 codec, Lightfinder 2.0, Forensic WDR, OptimizedIR up to 50 m, AXIS Edge Vault (signed firmware + signed video), AXIS Object Analytics + Live Privacy Shield + Image Health Analytics preinstalled, −40 °C operating range**. The Capture Advance R2-8MPFXDOME is the **ONVIF budget-tier 4K dome** — same pixel count but fundamentally different sensor size, AI capability, cybersecurity, and environmental posture. Choose the **Axis P1488-LE** for forensic / outdoor / federal / AI-driven 4K positions. Choose the **R2-8MPFXDOME** for **general 4K coverage** where 4K IP at lower cost is the goal.
Where does the R2-8MPFXDOME win in Chicago projects? +
Best-fit Chicago positions: **(1) HOA and multi-tenant residential 4K IP networks** — wide common areas, parking-deck levels, large lobbies; **(2) Small-business greenfield 4K IP installations** on PoE switches; **(3) Property management 4K ceiling-mount** at small commercial properties; **(4) Retail interior + storefront overhang** 4K positions for store-floor coverage; **(5) Restaurant and hospitality 4K dining-room ceilings** at boutique venues; **(6) Healthcare 4K reception / waiting-room** ceilings at clinics; **(7) Federal-grant-funded budget 4K IP projects** requiring NDAA compliance; **(8) Mixed-tier projects** where premium cameras handle critical positions and Capture Advance handles general 4K coverage.
Does Vidimost install Capture Advance 4K IP cameras in Chicago? +
Yes. The R2-8MPFXDOME is one of our budget-tier 4K IP camera picks for Chicago small-business, HOA, property-management, retail, hospitality, and federal-grant-funded projects where NDAA + ONVIF + 4K at lower cost is the right answer. Full-scope service includes site walkthrough, network design (PoE switch sizing, 4K bandwidth planning, VLAN segmentation), Cat6 cable runs, mounting (ceiling, soffit, eave, wall), VMS integration via ONVIF, IVA configuration, edge-storage setup, and operator training.
