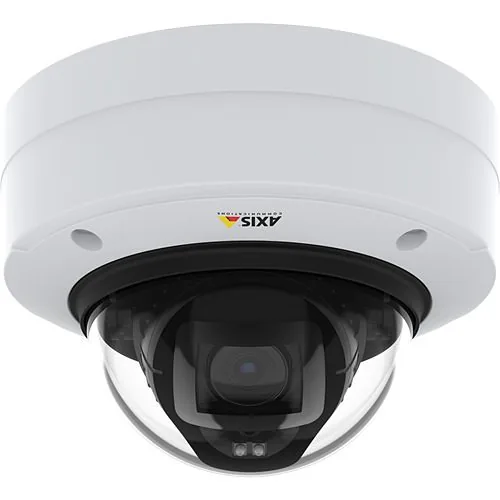

Axis P3248-LVE 4K Outdoor Vandal Dome with Lightfinder 2.0 + Forensic WDR + OptimizedIR
Model / Series: P3248-LVE
Discontinued 4K outdoor vandal dome (IK10 / IP66, −40 °C). Still installed for like-for-like swaps on existing fleets — Axis hardware support runs into 2028.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- Axis Communications
- Model
- P3248-LVE
- Series
- Axis P3 Series (Discontinued — Replaced by P3278-LVE / P3288-LVE)
- Camera Type
- IP outdoor IR vandal dome with motorized varifocal lens
- Image Sensor
- 1/1.8" CMOS
- Resolution
- 4K UHD (3840 × 2160)
- Max Frame Rate
- 25 / 30 fps
- Lens
- 4.3–8.6 mm motorized varifocal (2× zoom range)
- Aperture
- F1.5
- Field of View (Horizontal)
- 100° (wide) – 53° (tele)
- Day/Night
- Yes (auto)
- Low-Light Technology
- Lightfinder 2.0
- WDR
- Forensic WDR
- IR Illumination
- Built-in OptimizedIR
- Video Compression
- H.265 / H.264 with Axis Zipstream
- Audio
- Two-way audio supported
- Alarm I/O
- 1 input / 1 output
- Network
- Power over Ethernet (PoE Class 3)
- ONVIF
- Profile G
- Edge Storage
- microSD card slot
- Cybersecurity
- Signed firmware, secure boot, HTTPS, IEEE 802.1X
- Operating Temperature
- −40 °C to +50 °C (−40 °F to +122 °F)
- Environmental Protection
- IP66
- Impact Resistance
- IK10
- Hardware / RMA Support
- Through Feb 28, 2028
- AXIS OS Software Support
- Through Dec 31, 2029
Best Fit & Recommended For
Axis P3248-LVE — 4K Outdoor Vandal Dome (Discontinued, Successor: P3278-LVE)
The Axis P3248-LVE is a 4K outdoor vandal-resistant dome camera from Axis Communications’ P3 series — for years a Chicago commercial standard on entrances, parking decks, and perimeters before being replaced by the P3278-LVE (and P3288-LVE) in the current Axis lineup. The P3248-LVE combines a 1/1.8” 4K CMOS sensor, 4.3–8.6 mm motorized varifocal lens (F1.5, 100°–53° HFOV), Lightfinder 2.0, Forensic WDR, OptimizedIR, IK10 / IP66 housing, and −40 °C operating range.
Status: Discontinued. Hardware / RMA support continues through Feb 28, 2028 and AXIS OS firmware updates continue through Dec 31, 2029.
Where Vidimost Still Installs the P3248-LVE in Chicago
- Warranty / RMA replacement of failed units on existing deployments
- Configuration-uniformity expansion when adding cameras to an existing P3248-LVE-architected site (mid-cycle, before refresh budget approves the P3278-LVE migration)
Migration Path: P3248-LVE → P3278-LVE
The P3278-LVE is the direct successor with the same 8MP / 4K / 1/1.8” sensor class. Step-up features over the P3248-LVE:
- Longer 4.4–14.6 mm motorized varifocal lens (3.3× zoom vs. P3248-LVE’s 2× zoom) — meaningfully more reach for distance identification
- AV1 codec support — 20–30% storage reduction below H.265 at equivalent quality
- AXIS Object Analytics with deep-learning human / vehicle classification on the edge
- Axis Edge Vault with FIPS 140-3 Level 3 certified secure cryptographic key storage
- Latest ARTPEC-9 chipset
Coverage migration: the P3248-LVE’s wider 100° max FOV vs. the P3278-LVE’s narrower 4.4 mm wide-end may require camera repositioning to maintain coverage on existing P3248-LVE positions. Vidimost recommends site walkthrough before bulk fleet replacement to confirm coverage continuity.
Lightfinder 2.0 + Forensic WDR + OptimizedIR
The P3248-LVE’s image-quality stack — Lightfinder 2.0 for low-light color, Forensic WDR for high-contrast Chicago scenes, OptimizedIR adaptive infrared — has been a Chicago commercial standard for years. The same stack carries forward on the P3278-LVE successor with chipset-generation refinements.
Professional Support by Vidimost in Chicago
Vidimost LLC services existing Axis P3248-LVE fleets across the city of Chicago. Scope includes failed-unit replacement, fleet-uniformity expansion, RMA processing, firmware management, integration support on Axis Camera Station / Genetec / Milestone, and migration planning to the P3278-LVE when refresh cycle hits. Contact us for support quotes.
