Axis Communications · Video Surveillance · Cameras

Axis P1265 Mk II 1080p Modular Pinhole Camera for ATM, Covert + Discreet Indoor Coverage

Model / Series: P1265 Mk II

Two-piece pinhole camera — a sensor head small enough to hide in an ATM bezel or fixture, main unit tucked out of sight. 1080p, Forensic WDR.

NDAA Compliant AI Analytics
Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. Inheriting a half-working setup from a previous vendor? Start with a security system takeover.

Axis P1265 Mk II

Specifications

Brand
Axis Communications
Model
P1265 Mk II
Series
Axis P12 Modular Series
Camera Type
Modular pinhole IP camera (separate sensor unit + main unit)
Image Sensor
1/2.7" CMOS (in sensor unit)
Resolution
2 MP (1920 × 1080) — 1080p
Max Frame Rate
30 fps / 25 fps
Lens
Pinhole (fixed) — small concealable sensor unit
Day/Night
Yes (auto)
Low-Light Technology
Lightfinder
WDR
Forensic WDR
Video Compression
H.265, H.264 with Axis Zipstream
Streaming
Dual-stream
Audio Support
Yes — audio I/O on main unit
Alarm I/O
1 input / 1 output (on main unit)
Network
Power over Ethernet (PoE Class 1)
ONVIF
Profile G, S, T
Edge Storage
microSD card slot (in main unit)
Application Platform
AXIS Camera Application Platform (ACAP)
Cybersecurity
Axis Edge Vault — secure boot, signed firmware, signed video, HTTPS, IEEE 802.1X
Operating Temperature
0 °C to +50 °C (indoor / semi-protected positions)
Form Factor
Modular — small sensor head + separate main unit (cable-connected)
Mounting
Architectural concealment — sensor unit fits in walls, ceilings, fixtures, ATMs
TAA / NDAA Compliance
Per Axis Communications documentation

Best Fit & Recommended For

✓ ATM alcove pinhole capture at convenience stores and building lobbies
✓ Cash-count room concealed coverage at storefront retail
✓ Retail cash-wrap / cash-count concealed coverage
✓ Architectural-concealed positions — fixtures, walls, ceilings
✓ Healthcare reception covert (HIPAA-sensitive positions)
✓ Property management front-desk covert
✓ Hospitality lobby concealed positions
✓ Education administration / cash-handling areas

Axis P1265 Mk II — 1080p Modular Pinhole for ATM + Covert + Architectural-Concealed Positions

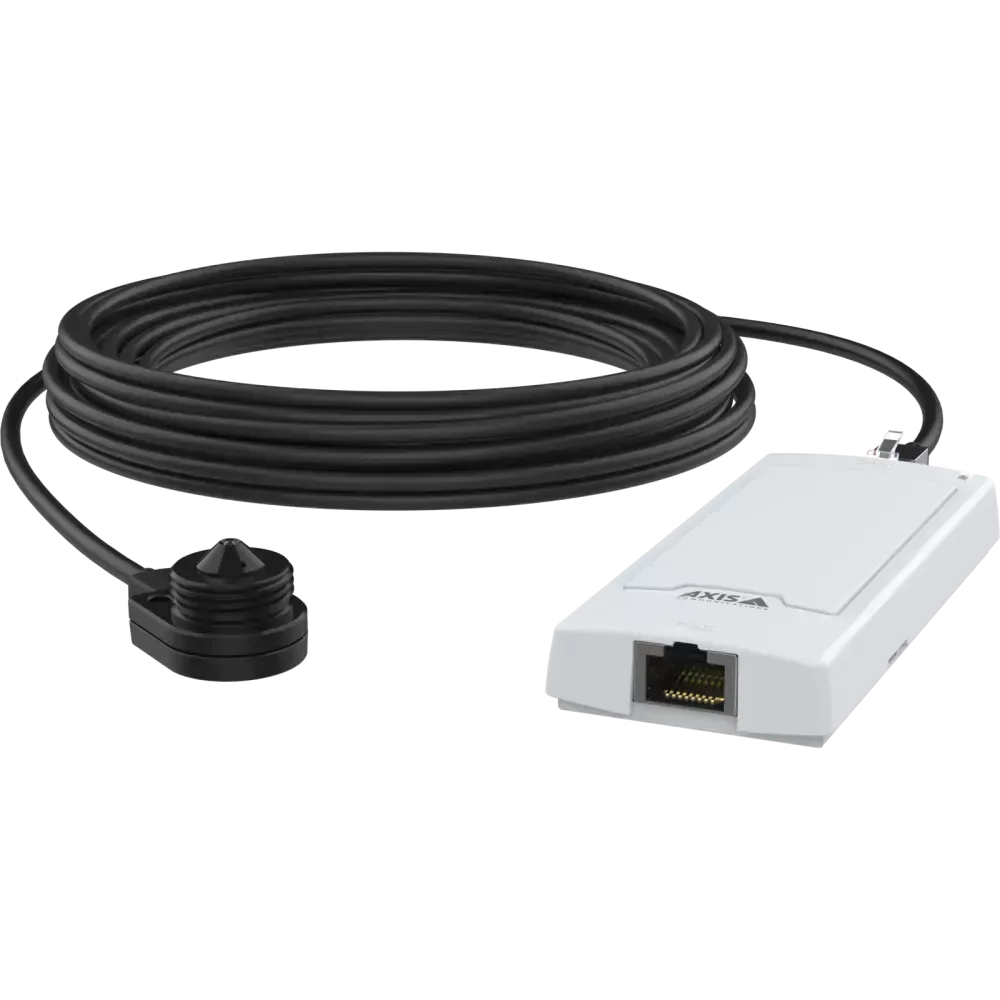

The Axis P1265 Mk II is a 2MP (1080p) modular pinhole camera from Axis Communications’ P12 modular series — featuring a small detachable sensor head (lens + sensor) connected by cable to a separate main unit (network, microSD edge storage, audio I/O, alarm I/O). Built for covert and discreet positions where camera visibility would compromise the use case: ATM alcoves, retail cash-counts, architectural concealment, and compliance capture where the camera can’t be seen. Includes Lightfinder, Forensic WDR, Axis Edge Vault cybersecurity (signed firmware + signed video), microSD edge storage, and PoE Class 1.

Why a Modular Pinhole

NeedStandard CompactModular Pinhole (P1265 Mk II)
Visible deterrentYes (visible)No (concealed)
Small architectural openingWon’t fitFits through fixtures / panels / ATM bezels
Main unit hidden separatelyNo (single piece)Yes (cable-connected, hidden)
ATM bezel mountNot suitedDesigned for it
Cash-count discretionVisibleDiscreet
HIPAA-sensitive front-of-houseVisibleDiscreet (regulatory advantage)

The pinhole + separated-main-unit architecture is the core differentiator: enables installation positions impossible for single-piece cameras.

P1265 Mk II vs. M1075-L Comparison

FeatureP1265 Mk II (this)M1075-L
Form factorModular pinhole (sensor + main unit)Compact mini-dome / shelf
VisibilityConcealed / discreetVisible front-of-house
Resolution1080p1080p
AudioAudio I/O on main unitTwo-way (built-in mic + speaker)
Best fitATM / cash count / covertSmall-business front-of-house
AI AnalyticsStandardAXIS Object Analytics preinstalled

Choose the P1265 Mk II for covert / pinhole / concealment. Choose the M1075-L for visible small-business front-of-house with two-way audio + AI.

Where the P1265 Mk II Wins in Chicago

  • ATM alcoves at convenience stores and building lobbies that host a machine
  • Retail cash-wrap / cash-count concealed coverage — boutique retail, jewelry counters, high-value retail
  • Clinic reception where an overt camera would read wrong — HIPAA-sensitive front-of-house
  • Boutique-hotel lobby concealment — Loop, River North, Mag Mile
  • Property management front-desk covert at high-rise residential buildings
  • Back-office cash-handling rooms at storefronts and small offices

Local Chicago Coverage

Vidimost installs the P1265 Mk II across the full city of Chicago — downtown Loop to the neighborhood corridors.

Cross-Platform Alternative

For projects without an Axis VMS commitment, Hanwha XNB-6002 modular sensor + main unit pairing is the closest pinhole alternative. The P1265 Mk II wins on Axis Edge Vault cybersecurity (signed firmware / signed video) — worth it where cryptographic chain-of-custody matters and the footage might end up in front of a judge.

Professional Installation by Vidimost

Vidimost LLC is an active Axis Communications installer across Chicago. The P1265 Mk II is one of our standard covert / pinhole picks for Chicago retail cash-count, clinic reception, and concealed indoor positions. Full-scope service includes site walkthrough, architectural concealment planning (sensor-head mounting through fixtures / panels / ATM bezels), Cat6 + PoE switch sizing, Axis Camera Station commissioning, Forensic WDR + Lightfinder tuning per scene, motion zone setup, ACAP application deployment, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Axis Communications

Axis M1075-L

The Axis M1075-L is a 2MP (1080p) compact indoor mini-dome / shelf camera built on the ARTPEC-8 chipset — featuring built-in IR, two-way audio (built-in mic + speaker), Forensic WDR, Lightfinder, AXIS Object Analytics preinstalled, microSD slot, and PoE Class 3. Compact form factor with 0–35 °C indoor operating range — purpose-built for small-business indoor coverage, retail counter areas, hospitality lobbies, and home / SOHO Chicago commercial deployments.

View →

Axis Communications

Axis P3267-LVE

5MP outdoor vandal dome with motorized zoom and built-in IR — a workhorse outdoor security camera for condo entrances, storefronts, and parking garages.

View →

Axis Communications

Axis P1387

The Axis P1387 is a 5MP indoor box camera with replaceable lens, Forensic WDR, Lightfinder low-light technology, Axis Zipstream, ACAP application platform, microSD edge storage, and Axis Edge Vault cybersecurity. The lens-flexible 5MP indoor choice for industrial, retail back-of-house, manufacturing-floor, and commercial-office Chicago indoor positions where standard fixed-lens cameras can't match scene requirements.

View →

Axis Communications

Axis Q1656-LE

The Axis Q1656-LE is a premium 4MP outdoor box camera built on the ARTPEC-8 chipset with deep-learning processing unit (DLPU) — featuring a 1/1.8" CMOS sensor, 60 fps, motorized varifocal i-CS lens (Lightfinder 2.0, Forensic WDR, OptimizedIR), IP66 / IP67 / IK10, −40 °C to +60 °C operating range, AXIS Edge Vault cybersecurity, and preinstalled AXIS Object Analytics. Built for forensic-grade Chicago perimeter, motion-critical traffic, and identification-critical positions where high frame rate and AI matter.

View →

Frequently Asked Questions

What is a modular pinhole camera and when do I use one? +
A **modular pinhole camera** has the **image sensor + lens in a small detachable head** connected by cable to a separate **main unit** (which holds the network connection, microSD slot, processor). This means the sensor head can be installed in **very small openings** — through architectural fixtures, behind walls, in ATM bezels, in cash-count positions — while the main unit (larger, with all the I/O) sits hidden in a wiring closet or behind drywall. Use cases: **(1) ATM alcove covert capture** at stores and lobbies that host a machine, **(2) retail cash-count or cash-wrap concealed coverage**, **(3) architectural concealment** where the camera must be invisible, **(4) hotel / clinic front-of-house** where overt cameras are inappropriate.
How does the P1265 Mk II differ from a standard compact camera? +
Standard compact cameras like the [M1075-L](/products/video-surveillance/cameras/axis-m1075-l/) are **single-piece visible cameras** designed to be seen as a deterrent. The P1265 Mk II is **modular and discreet**: only the small sensor head is visible (and even that can be flush-mounted in fixtures), while the main unit is hidden. **Choose the M1075-L** for visible front-of-house deterrence with two-way audio. **Choose the P1265 Mk II** when you need: covert capture, architectural concealment, ATM bezel installation, cash-count discretion, or compliance recording where camera visibility would compromise the use case.
What's new on the P1265 Mk II vs. the original P1265? +
The Mk II refresh keeps the modular pinhole architecture and 1080p resolution while updating the platform: improved **Lightfinder** + **Forensic WDR** processing, modern Zipstream + H.265 efficiency, **Axis Edge Vault** cybersecurity (secure boot, signed firmware, signed video) — bringing the cybersecurity posture in line with Axis' current Edge Vault generation. The original P1265 remains compatible with prior fleets; the Mk II is the choice for new installs.
Is the P1265 Mk II suited for ATM applications? +
Yes — ATM enclosures and bezels are a **primary use case** for the modular pinhole architecture. The small sensor head fits through ATM bezel openings, architectural fixtures, or signage panels, while the main unit (with microSD edge storage, network, and I/O) sits behind the panel. Edge Vault cybersecurity (signed firmware, signed video) is worth having anywhere the footage might end up as evidence. The 1080p resolution + Forensic WDR delivers usable forensic detail for ATM transaction capture.
Why does Edge Vault cybersecurity matter for covert positions? +
**Axis Edge Vault** provides cryptographic guarantees that the camera firmware hasn't been tampered with, the video stream is cryptographically signed (provable authenticity for evidentiary review), and the camera communicates over IEEE 802.1X / HTTPS. For covert positions where evidentiary chain-of-custody matters — footage that may need to hold up in court — Edge Vault is the differentiator over generic IP cameras.
Where does the P1265 Mk II win in Chicago projects? +
Best-fit Chicago positions: **(1) ATM alcoves** at convenience stores and building lobbies that host a machine; **(2) Retail cash-wrap / cash-count concealed coverage**; **(3) Clinic reception** where an overt camera reads wrong; **(4) Boutique-hotel lobby concealment** — Loop, River North, Mag Mile; **(5) Property management front-desk covert**; **(6) Back-office cash-handling rooms** at storefronts and small offices.
How does the P1265 Mk II compare to Hanwha pinhole alternatives? +
For projects without an Axis VMS commitment: **Hanwha XNB-6002** modular sensor + **SUNAPI**-compatible main units offer comparable pinhole architecture; **Hanwha QNB-6082R** is a competing 2MP indoor option. The Hanwha alternatives win on cost; the P1265 Mk II wins on **Axis Edge Vault cybersecurity (signed firmware / signed video)** where tamper-evident footage matters, and **Axis VMS integration**.
Is the P1265 Mk II compatible with Axis Camera Station, Genetec, Milestone? +
Yes. ONVIF Profile S, G, T — fully compatible with Axis Camera Station, Genetec Security Center, Milestone XProtect, and most ONVIF-based recorders. For full Edge Vault feature access (signed video verification), Axis Camera Station + supporting VMS versions are recommended.
Does Vidimost install Axis modular pinhole cameras in Chicago? +
Yes. The P1265 Mk II is one of our standard covert / pinhole picks for Chicago retail, clinic, and hotel covert positions. Full-scope service includes site walkthrough, **architectural concealment planning** (sensor-head mounting through fixtures / panels / ATM bezels), Cat6 + PoE switch sizing, Axis Camera Station commissioning, Forensic WDR + Lightfinder tuning per scene, motion zone setup, ACAP application deployment, and operator training.
