Axis Communications · Video Surveillance · Cameras

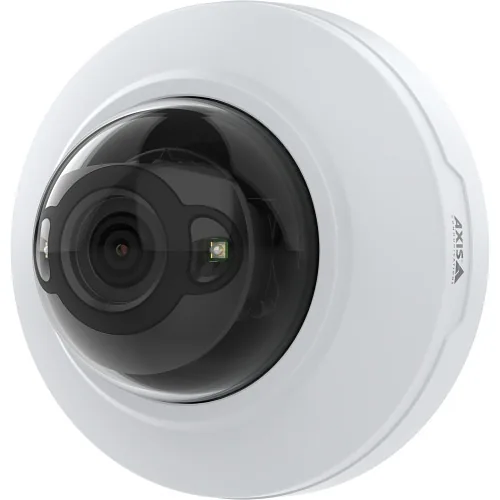

Axis M4218-LV 4K (8MP) Indoor Vandal Dome with IR + Varifocal Remote Zoom + Forensic WDR + OptimizedIR

Model / Series: M4218-LV

4K indoor dome camera with built-in IR and remote zoom — identification-grade detail for lobbies and counters, lights on or off.

NDAA Compliant AI Analytics Vandal Resistant

Request a Quote Ask About Installation

We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. First time working with us? Here’s why Chicago buildings pick Vidimost.

Specifications

Brand: Axis Communications
Model: M4218-LV
Series: Axis M Line (Premium Indoor Vandal Dome — 4K Varifocal with IR)
Camera Type: IP indoor vandal dome with motorized varifocal lens + built-in IR
Image Sensor: 1/2.8" CMOS
Resolution: 8MP / 4K (3840 × 2160)
Lens: 3.5–6.6 mm motorized varifocal with remote zoom and focus, F1.7–2.6
Field of View (Horizontal): 93° (wide) – 47° (tele)
Max Frame Rate: 12–15 fps at 4K
WDR: Forensic WDR
IR Illumination: Built-in OptimizedIR — 0 lux B/W minimum illumination
Video Compression: H.265 / H.264 with Axis Zipstream
Analytics: AXIS Object Analytics, AXIS Scene Metadata — deep-learning on edge
Outputs: HDMI output for public-viewing monitor
Cybersecurity: Axis Edge Vault
Network: Power over Ethernet (PoE Class 3)
ONVIF: Profile G
Application Platform: AXIS Camera Application Platform (ACAP)
Edge Storage: microSD card slot
Form Factor: Compact dome — repaintable casing, clear or smoked dome accessories
Indoor / Outdoor: Indoor
Operating Temperature: 0 °C to 40 °C
Environmental Protection: IP42
Impact Resistance: IK08

Best Fit & Recommended For

✓ Chicago retail discreet 4K positions where 4K identification detail at distance + IR night coverage matter

✓ Bar and restaurant interiors that go dark after close — IR keeps coverage overnight

✓ Hospitality lobby + reception 4K coverage at premium properties

✓ Condo and apartment lobby + mailroom 4K positions

✓ Office building lobby + reception positions with 4K identification + remote zoom

✓ Warehouse offices and cash rooms where 4K detail is part of the spec

✓ Public-view monitor positions where 4K HDMI feed creates visible-deterrence display

Axis M4218-LV — Premium 4K (8MP) Indoor Vandal Dome with IR

The Axis M4218-LV is a premium 4K (8MP) indoor vandal-rated dome with built-in IR from Axis Communications’ M Line — the Axis 4K indoor varifocal dome for Chicago discreet-surveillance retail, hospitality, condo-lobby, and office positions where 4K identification detail at distance + IR night coverage + remote zoom matter. The M4218-LV combines a 1/2.8” 8MP CMOS sensor, 3.5–6.6 mm motorized varifocal lens (F1.7–2.6, 93°–47° HFOV) with remote zoom and focus, Forensic WDR, OptimizedIR with 0 lux B/W capability, deep-learning AXIS Object Analytics + Scene Metadata on the edge, HDMI output for public-view monitor architectures, IK08 / IP42 indoor housing, repaintable casing, and 0–40 °C operation. PoE Class 3 powered.

Where the M4218-LV Wins in Chicago

Retail discreet 4K positions where 4K identification detail at distance + IR night coverage matter
Bar + restaurant interiors that go dark after close — 0 lux IR keeps recording
Hospitality lobby + reception 4K coverage at premium properties
Condo + apartment lobby / mailroom 4K positions
Office building lobby + reception positions with 4K identification + remote zoom
Warehouse offices + cash rooms where 4K detail is part of the spec
Public-view monitor positions where 4K HDMI feed creates visible-deterrence display

M4218-LV vs. M4216-V

Feature	M4218-LV (this)	M4216-V
Resolution	8MP / 4K	4MP
Sensor	1/2.8”	1/2.7”
Lens range	3.5–6.6 mm with IR	3–6 mm without IR
Built-in IR	OptimizedIR (0 lux)	—
PoE class	Class 3	Class 2
Max framerate at full res	12–15 fps	25/30 fps
Best fit	4K + IR night	Lit indoor + 4MP

For 4K outdoor exposure, see P3278-LVE.

Professional Installation by Vidimost in Chicago

Vidimost LLC installs the Axis M4218-LV across Chicago as a premium indoor 4K vandal dome with IR. Scope includes site walkthrough (4K-pixel-density-on-target planning), mounting, Cat6 + PoE Class 3 switch sizing, NVR / VMS commissioning, Forensic WDR + IR-illumination tuning per scene, AXIS Object Analytics + Scene Metadata configuration, HDMI public-view monitor cabling if applicable, and operator training. Contact us for a free site walkthrough and quote.

Frequently Installed Together

Axis Communications

Axis M4216-V

4MP indoor dome camera with motorized zoom and an HDMI feed for a public-view monitor — re-aim it from a laptop, no ladder.

View →

Axis Communications

Axis M3086-V

The Axis M3086-V is a compact 4MP indoor vandal-rated mini-dome (1/2.7" CMOS, 2.4 mm fixed M12-mount lens, F2.1, 130° HFOV) with WDR, Lightfinder, AXIS Object Analytics on the deep-learning processing unit, Zipstream H.265, optional built-in microphone variant (M3086-V Mic), IK08 / IP42, and 0–45 °C operating range. Bayonet-fitted casing for quick installation, designed for repaint. The cost-effective Axis indoor mini-dome successor for retail, commercial real estate, education, and healthcare.

View →

Axis Communications

Axis P3278-LVE

4K (8MP) outdoor vandal dome with a 4.4–14.6 mm motorized zoom — plate-readable detail across a parking lot from a single mount.

View →

Frequently Asked Questions

Why is the M4218-LV indoor only? +

**IP42** rates against incidental dust and dripping water from above — appropriate for indoor positions, not for outdoor / wind-driven-rain exposure. The **L** in M4218-**LV** denotes built-in IR illumination (the LE / LVE model designations carry outdoor environmental rating). For 4K outdoor positions, see the **[P3278-LVE](/products/video-surveillance/cameras/axis-p3278-lve/)** (8MP / 4K outdoor IP66 / IK10 / NEMA 4X with Lightfinder 2.0 + FIPS 140-3 L3).

Why is max frame rate 12–15 fps at 4K? +

At full 4K (3840 × 2160) resolution, the M4218-LV's processor caps frame rate at 12–15 fps — sufficient for **identification-detail recording** at retail, banking, and lobby positions but lower than the 25 / 30 fps typical of premium P-line 4K cameras (e.g., [P3278-LVE](/products/video-surveillance/cameras/axis-p3278-lve/) at 25/30 fps full 4K). For positions where motion-fluidity at 4K matters (sports facilities, fast-action retail, vehicle drive-through), the P-line is the right pick. For static identification positions (lobby, reception, retail counter), the M4218-LV's 12–15 fps is fine.

What does OptimizedIR deliver on this camera? +

The M4218-LV's **OptimizedIR** delivers **0 lux B/W minimum illumination** — meaning the camera produces useful identification-quality monochrome imagery in pitch darkness using only its built-in IR LED illumination, with adaptive beam-spread tuned to the lens zoom position. For Chicago indoor positions where lights go off at night (back-of-house, after-hours retail, parking-deck levels with intermittent ambient light), the IR delivers full coverage.

M4218-LV vs. M4216-V — which to pick? +

Pick **M4218-LV (this, 4K + IR)** when: (1) **4K identification detail** is part of the requirement, (2) the position has periods of low / no ambient light requiring **IR night-coverage**, (3) the position is **interior premium** (hotel lobbies, upscale retail, condo towers). Pick **[M4216-V](/products/video-surveillance/cameras/axis-m4216-v/) (4MP, no IR)** when: (1) 4MP is sufficient, (2) the position has reliable ambient lighting (no IR needed), (3) **lower power budget** (Class 2 vs. Class 3 PoE) matters.
