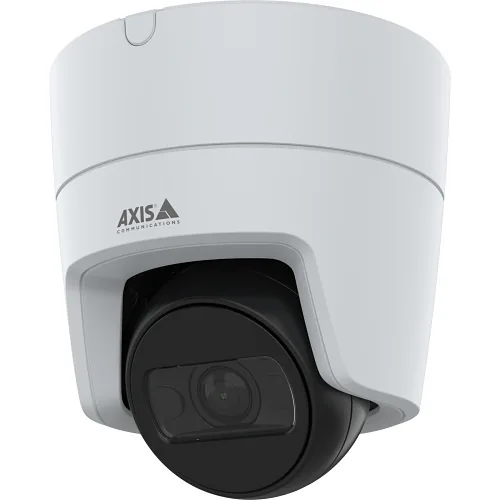

Axis M3126-LVE 4MP Outdoor Mini-Dome with OptimizedIR + Lightfinder + Deep-Learning Analytics
Model / Series: M3126-LVE
Compact 4MP outdoor mini-dome with a 130° lens and built-in IR — one camera covers a walk-up entrance or storefront door corner to corner.
We don't just ship boxes — this goes in as part of our security camera installation in Chicago work. From the Loop to Rogers Park — see our security work across Chicago.
Specifications
- Brand
- Axis Communications
- Model
- M3126-LVE
- Series
- Axis M Line (Outdoor Mini-Dome / Turret)
- Camera Type
- IP outdoor IR mini-dome turret with fixed-focal lens
- Image Sensor
- 1/2.7" CMOS
- Resolution
- 4MP (2688 × 1512)
- Lens
- 2.4 mm fixed-focal, F2.1
- Field of View (Horizontal)
- 130°
- Low-Light Technology
- Lightfinder
- WDR
- Forensic WDR
- IR Illumination
- Built-in OptimizedIR — up to 20 m (65 ft) or more
- Video Compression
- H.265 / H.264 with Axis Zipstream
- Analytics
- AXIS Object Analytics with deep-learning processing unit
- Cybersecurity
- Axis Edge Vault — FIPS 140-3 Level 3 certified secure cryptographic key storage
- Network
- Power over Ethernet (PoE Class 3)
- ONVIF
- Profile G
- Edge Storage
- microSD card slot
- Form Factor
- Flat-faced dome — suppresses reflections vs. traditional bubble dome
- Color Options
- Black or White housing
- Operating Temperature
- −30 °C to +50 °C
- Environmental Protection
- IP66
- Impact Resistance
- IK08
- Warranty
- 5 years
Best Fit & Recommended For
Axis M3126-LVE — 4MP Outdoor Mini-Dome with FIPS 140-3 Level 3 Cybersecurity
The Axis M3126-LVE is a compact 4MP outdoor mini-dome turret from Axis Communications’ M Line — the wide-HFOV cost-effective outdoor mini-dome for Chicago multi-tenant residential entrances, office tenant suite exteriors, hospitality side-entrances, parking garage pedestrian doors, and retail storefront entrances at compact mounting positions. The M3126-LVE combines a 1/2.7” 4MP CMOS sensor, 2.4 mm fixed-focal lens with 130° HFOV, Lightfinder, Forensic WDR, OptimizedIR up to 20 m+, deep-learning AXIS Object Analytics, Axis Edge Vault with FIPS 140-3 Level 3 cryptographic key storage, flat-faced dome (suppresses IR reflections), IK08 / IP66, −30 °C to +50 °C operation.
Available in black or white housing. 5-year warranty.
Where the M3126-LVE Wins in Chicago
- Multi-tenant residential building entrances + lobby exteriors at compact mounting positions
- Office tenant suite doors + corridor exteriors where wide HFOV at close range matters
- Café + restaurant side doors and patio entrances
- Parking garage pedestrian entrances at compact mounting positions
- Hospitality back-of-house + side-entrance coverage
- Retail storefront entrances at compact mounting positions
- Industrial / light-warehouse personnel doors
- Property management portfolios standardizing on cost-effective Axis outdoor mini-dome with FIPS 140-3 L3 cybersecurity baseline
M3126-LVE vs. M3216-LVE
| Feature | M3126-LVE (this) | M3216-LVE |
|---|---|---|
| HFOV | 130° (2.4 mm) | 102° (2.9 mm) |
| Vandal rating | IK08 | IK10 |
| OptimizedIR reach | 20 m+ | 30 m |
| Operating temp | −30 °C to +50 °C | −40 °C to +50 °C |
| FIPS 140-3 L3 | Yes | Per Axis spec |
| Form factor | Flat-faced compact mini-dome | Standard outdoor dome with weathershield |
Pick the M3126-LVE for wide HFOV at close range, FIPS 140-3 cybersecurity baseline, cost-effective compact form factor. Pick the M3216-LVE for harder-duty IK10, longer 30 m IR reach, polar-vortex cold-weather margin.
Flat-Faced Dome — Suppresses IR Reflections
Traditional bubble-dome cameras reflect internal IR illumination off the curved bubble back into the lens, degrading nighttime image quality. The M3126-LVE’s flat-faced dome design sends IR cleanly outward — better nighttime identification quality than commodity bubble-dome cameras at the same price tier.
Professional Installation by Vidimost in Chicago
Vidimost LLC installs the Axis M3126-LVE across the city of Chicago as a cost-effective outdoor mini-dome with FIPS 140-3 L3 cybersecurity baseline on Axis VMS deployments. Scope includes site walkthrough, mounting (compact form-factor fits tight ceiling / wall positions), Cat6 + PoE Class 3 switch sizing, NVR / VMS commissioning, Forensic WDR + Lightfinder tuning, AXIS Object Analytics configuration, FIPS 140-3 cybersecurity policy verification, and operator training. Contact us for a free site walkthrough and quote.
