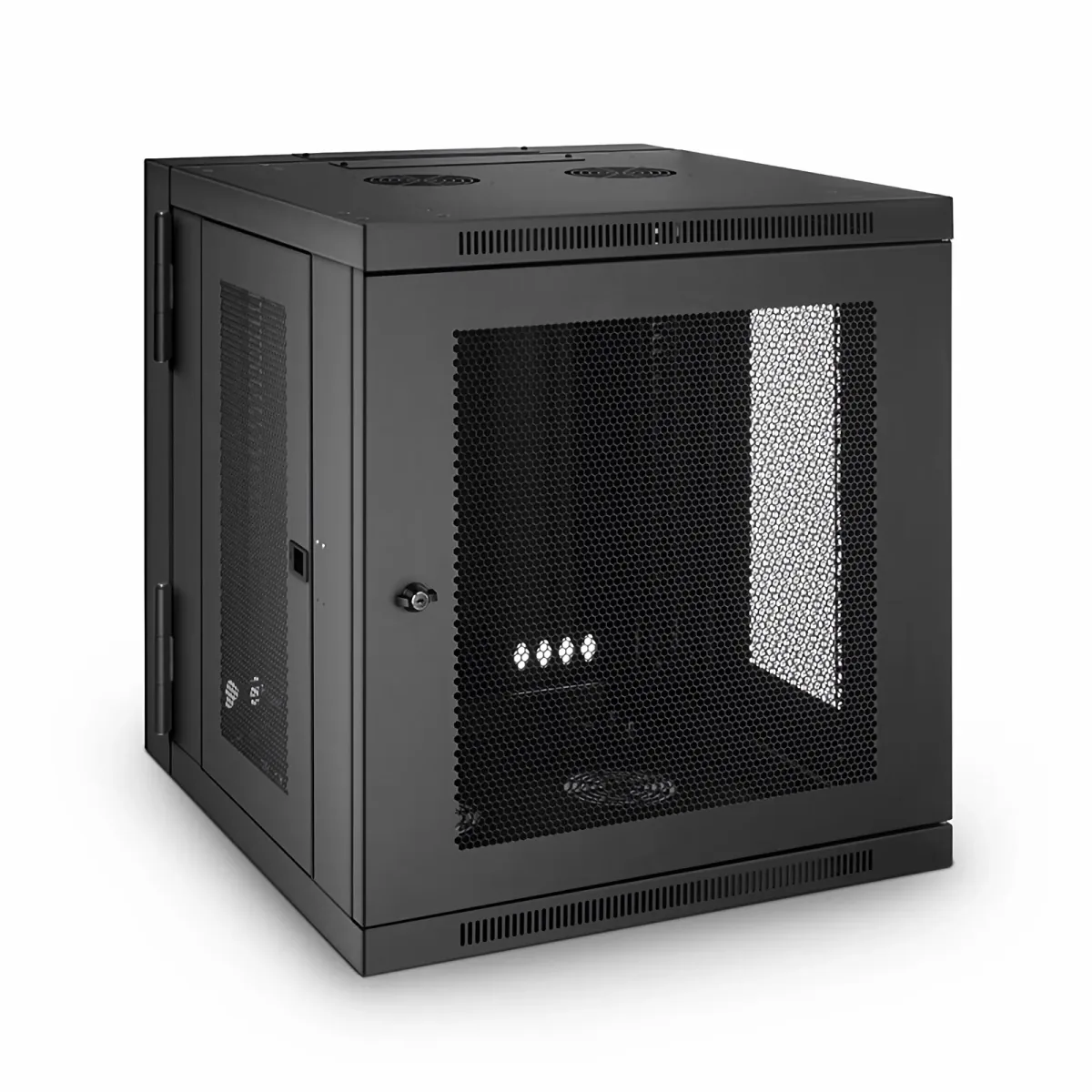

FS GV600 12U Wall-Mount Network Cabinet — Vented 19" Server Cabinet for Chicago
Model / Series: GV600-12U
12U wall-mount network cabinet with a vented door and hinged back — fits a switch, patch panel, and UPS in one enclosure.
We don't just ship boxes — this goes in as part of our business networking for security systems work. City building? See our Chicago, IL service area.
Specifications
- Brand
- FS
- Series
- FS GV600 Wall-Mount Cabinet
- Model
- GV600-12U
- Form Factor
- 19" 4-post wall-mount cabinet
- Rack Units
- 12U
- External Dimensions (W × D × H)
- 25 × 23.6 × 25.6 in (635 × 600 × 650 mm)
- Front Door
- Vented (perforated) for passive airflow
- Back Panel
- Hinged, removable for installer access
- Mounting
- 19" EIA standard, 4 mounting rails
- Construction
- Cold-rolled steel
- Color
- Black
Best Fit & Recommended For
FS GV600 12U Wall-Mount Network Cabinet
The FS GV600 12U is a wall-mount 19-inch four-post network cabinet sized for telecom closets, IDF rooms, and small-business server rooms where a full floor-standing rack would be overkill. 25 in W × 23.6 in D × 25.6 in H, vented front door for passive airflow, and a hinged back panel that swings open so the installer can land cabling without unboxing the cabinet from the wall.
What’s Confirmed by the Official FS Spec
These specifications come from the FS.com published GV600 product page:
- Series: GV600 Wall-Mount Cabinet
- Capacity: 12U
- External dimensions: 25 × 23.6 × 25.6 in (635 × 600 × 650 mm)
- Front door: vented / perforated (passive airflow)
- Back panel: hinged, removable for installer access
- Mounting: 19-inch EIA, 4 mounting rails
- Construction: cold-rolled steel
- Color: black
When the GV600 12U Fits — Closet-Class Cabinet
Pick the FS GV600 12U when:
- The site needs a proper enclosed cabinet, not just a 2-post wall bracket
- Equipment includes a PoE switch + patch panel + UPS in one cabinet
- The room has limited floor space but wall-side depth for a 23.6-inch cabinet
- The closet has tight access — the hinged back lets the installer cable from behind without removing the cabinet
For lighter loads (a single PoE switch on a 2-post bracket), step down to the Intellinet 716352 2U bracket or Intellinet 716369 4U bracket.
Where the FS GV600 12U Wins in Chicago
- Office building floor IDF
- Multi-tenant residential amenity / back-of-house network closet
- Hospitality property back-of-house network cabinet
- Condo building head-end cabinet for cameras and access control
- Restaurant back-office network cabinet
- Industrial / warehouse mezzanine network cabinet
- Retail back-room cabinet for POS / Wi-Fi infrastructure
- Parking garage equipment-room cabinet
- Small-business head-end cabinet for switch + patch + UPS
- Telecom / fiber demarcation room
Local Chicago Coverage
Vidimost installs the FS GV600 12U across the full city of Chicago for IDF rooms, telecom closets, and small-business head-end cabinets.
Recommended Pairings
- Intellinet 716352 2U Wall-Mount Bracket — open-frame alternative for single-switch sites
- Intellinet 716369 4U Wall-Mount Bracket — open-frame alternative for switch + patch panel
- UniFi PoE switches, patch panels, and UPS units (specified per project)
Professional Installation by Vidimost
Vidimost LLC installs the FS GV600 12U cabinet across Chicago. Full-scope service includes site walkthrough, wall-load and stud verification, AC primary placement, cabinet mounting with proper fasteners, equipment landing (switch, patch, UPS), CAT6 / CAT6A cabling, and labeling. Contact us for a free site walkthrough and quote.
